Tongue & Groove 5-3/16" - 3

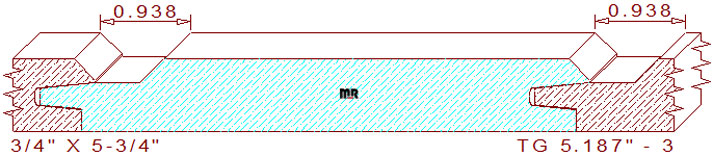

This 5-3/16" - 3 tongue & groove siding measures 5.750" width by .750" thickness, enabling the use of a six-inch-wide blank of four-quarter lumber for milling on a commercial-grade molder. The channeled profile contains a 5/8" deep by 9/32" wide offset groove on the right side. The opposite side retains a 7/16" deep rabbet that controls the amount of void or slop in the joint area when assembled. The top is a 4-15/64" broad flat line flanked by a 1/4" wide by 1/4" deep bevel with a 15/32" whole sunk fillet on the left. When two pieces of machined lumber get joined, they create a 15/16" broad beveled channel with a face coverage dimension of 5-11/64" wide.

This professionally drafted template ready computer-aided drafting (CAD) drawing exchange file (DXF) (purchase in the box below) contains three high precision template designs to create profile cutters for this fanct tongue & groove moulding, one for machining the entire width, and the other for milling just the profile portion of the pattern. Our professionally designed acrylic templates and knives include the required draft angles and blend areas to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening.
