Tongue & Groove 5-1/32"
Tongue & Groove 5-1/32"

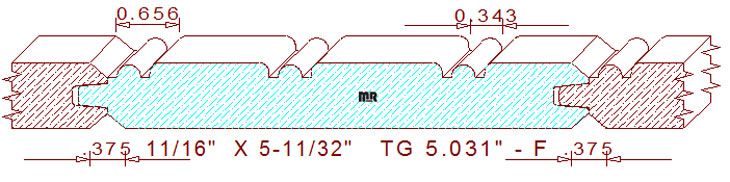

This 5-1/32" beadboard tongue & groove measures 5.343" wide overall by 11/16" thickness. The face dimension for determining installation coverage is 5.031" wide. The profile has three recessed ( .020") beads below the face for sanding purposes that are separated by sunk fillets and different width radius edge fillets. The back side has a V-joint measuring 3/8" wide when two finished milled pieces of lumber are joined together.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.687
Depth of Cut: 0.375
Left Cutter Head
Thickness: 0.687
Depth of Cut: 0.618
Top Cutter Head
Width: 5.031
Depth of Cut: 0.238
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
