Tongue & Groove 4-1/2" - 1

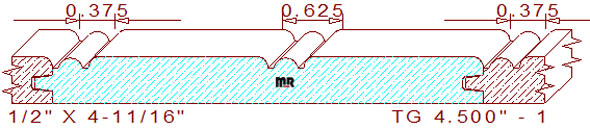

This beaded 4-1/2" - 1 tongue & groove siding measures 4.687" width by .500" thickness. The overall size allows for a 4-15/16" wide blank of resawn six-quarter lumber for milling on an industrial moulder. The captivating profile contains a 7/32" wide by 3/16" tall groove on the right and a 3/16" wide by 5/32" tall tongue on the left. There is a .015" void in the joint area for seasonal changes in relative humidity. The top retains a recessed (.020") 1/4" wide half-circle flanked by two 1/16" broad fillets on the left. This portion is joined by two 1-7/8" flat sections with 1/8" rounded edges and another half-circle boarded by 1/16" broad line segments in the center. When two pieces of milled lumber are merged, they create a 4-1/2" face coverage dimension on the paneling.

This template ready cad generated dxf file (purchase in the link below) contains three skillfully drafted template designs for producing profile cutters for this creative pattern. All our innovative profiles have a proven unbroken computer numerical control (CNC) tool path, making your job much easier in production.
