Tongue & Groove 3-1/2" - 2

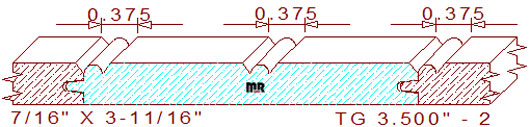

This 3-1/2" - 2 tongue & groove beadboard measures 3.687" wide overall, and the face dimension is 3.500" wide by .438" thickness, allowing the pattern to be machined from resawn five or six-quarter or solid four-quarter lumber. The decorative profile is composed of a 7/32" wide by 1/8" tall tongue and groove with a .008" void for expansion and contraction of the wood during seasonal changes in relative humidity. The face side of the pattern consists of two 1-3/8" broad lines, divided by a 3/16" wide recessed (.015" for sanding) bead flanked by 3/32" beveled lines, the top edges retain one half of the profile on each side, creating a 3/8" wide profile when two pieces of lumber are joined together.

This cad generated dxf file (purchase in the link below) contains three skillfully drafted template designs for producing knives for this creative pattern. All our innovative profiles have a proven unbroken computer numerical control (CNC) tool path, expediting the production process.
