Tongue & Groove 2-1/2" - 3

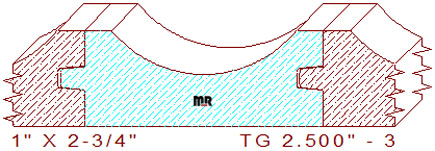

This concave 2-1/2" - 3 tongue & groove measures 2.750" wide overall, and the face coverage dimension is 2.500" wide by 1" thickness, allowing the detail to be machined from five-quarter lumber. The dished-out profile is composed of a 1-15/16" wide 1-1/4" radius semicircle in the center, flanked by 9/32" wide line segments on each side edge of the pattern. The joint consists of a 1/4" wide by 1/4" tall tongue and groove centered on the overall thickness, there is a .008" void in the joint for expansion and contraction of the wood during seasonal changes in relative humidity.

Try one of our 125% concentration ultimate CBN grinding wheels. Finish grinding at 3000 rpm with a twenty-degree back clearance angle will create a superior micro edge on all your high-speed steel profile knives. Read this article or watch the videos to help better understand how to align a borazon wheel to axial constant on a Weinig R960 profile grinder.

The present-day combined high-speed steel knives & template prices are listed below for quoting purposes.
