Tongue & Groove 2-13/32"

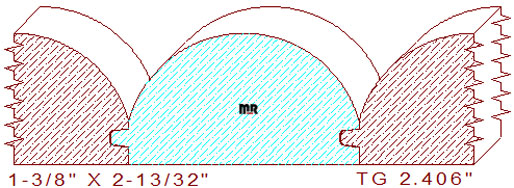

This single bead tongue & groove 2-13/32" measure 2.594" width by 1.375" thickness, requiring a 2-7/8" wide blank of six or eight-quarter lumber for milling on an industrial moulder. The convex profile contains a 3/16" wide by 3/16" tall tongue and groove on the sides. The top retains a 1-1/4" convex arc leaving a 29/64" thickness on each side. When two pieces of milled lumber merge, they create a log appearance with a face coverage dimension of 2-13/32" wide. There is also a .006" void in the joint for expansion and contraction of the wood for seasonal changes in relative humidity.

Do you ever wonder why certain wood species have tear-out problems during milling? Find out more about reducing and eliminating tear issues by changing the cutter head hook angle on the knives. Consider purchasing 12/20 degree duel angle cutter heads; this will save a substantial amount of money when investing in this style of molder tooling.
