Tongue & Groove 2-3/8"

Tongue & Groove 2-3/8"

Tongue & Groove 2-3/8"

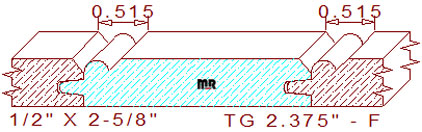

This small beadboard tongue & groove paneling 2-3/8" face measures 2.625" wide by .500" thickness. The sides are comprised of a 9/32" wide by 5/32" tall groove and a 1/4" wide by 5/32" tongue, with .010" void in the joint area to assure a good fit when assembled. The face side consists of a 17/64" wide half-round bead flanked by a 1/8" wide chamfer on each side. The semi-circle is recessed by .020" to allow for sanding after the milling process.

Learn how to become more efficient while searching over 15,000 mouldings in our state-of-the-art profile catalog. Watch the short video on the first page to find design ideas for your next woodworking project; we're sure you will locate the perfect embellished pattern to enhance the architectural style of your beautiful home or office.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.500
Depth of Cut: 0.281
Left Cutter Head
Thickness: 0.500
Depth of Cut: 0.250
Top Cutter Head
Width: 2.375
Depth of Cut: 0.202
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
$130.50
$199.25
Not Needed
Total:
$460.25
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$137.50
$211.75
Not Needed
Total:
$486.75
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$144.50
$224.25
Not Needed
Total:
$513.25
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
