Tongue & Groove 1-1/2" - 28
Tongue & Groove 1-1/2" - 28

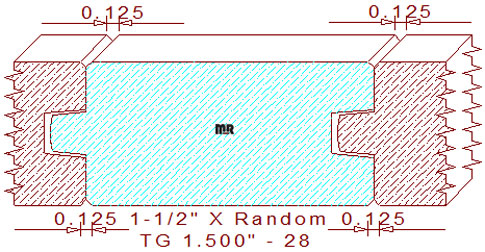

This 1/8" V joint tongue & groove decking moulding 1-1/2" - 28 measures 1.500 thickness, and widths are adjustable to any desired size within the limits of the moulder/shaper utilized to mill the pattern. The profile comprises a 7/16" wide by 3/8" deep tongue with a 1/2" wide by 7/16" deep groove. Both details have a 1/16" wide by 1/16" deep chamfer on the side edges. When two pieces of finished milled lumber are joined together, they will create a 1/8" wide micro bevel groove on both faces of the joined boards.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.500
Depth of Cut: 0.438
Left Cutter Head
Thickness: 1.500
Depth of Cut: 0.531
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
