Search Our Moulding Knives Catalog by Category and Size

*Enter desired search sizes - use whole numbers & decimals

Tongue & Groove 1-1/2" - 13

Tongue & Groove 1-1/2" - 13

Tongue & Groove 1-1/2" - 13

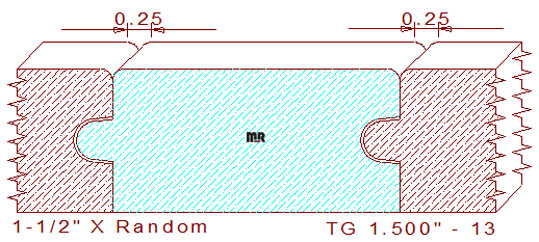

This 1-1/2" - 13 radius edge roof decking measures 1.500" thickness; widths can be adjusted to any desired size within the parameters of the moulder used to mill the pattern. When two milled boards are joined together, they create a 1/4" wide by 1/8" deep radius vee groove on one face side of the lumber. The profile consists of a 1/2" wide by 3/8" deep tongue and groove, with a 1/8" radius edge on one side edge of the pattern. There is a .053" void built into the joint area for expansion and contraction of the lumber during seasonal changes in relative humidity.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.500
Depth of Cut: 0.406
Left Cutter Head
Thickness: 1.500
Depth of Cut: 0.695
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$155.50
$164.50
Not Needed
Not Needed
Total:
$320.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$164.50
$173.50
Not Needed
Not Needed
Total:
$338.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$173.50
$182.50
Not Needed
Not Needed
Total:
$356.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
