Tongue & Groove 1-7/16" - 2
Tongue & Groove 1-7/16" - 2

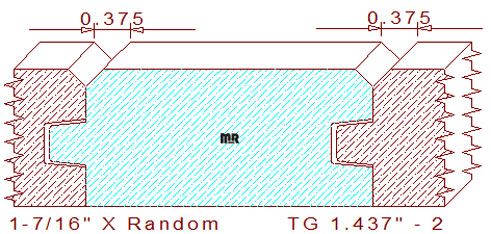

This 1-7/16" - 2 tongue & groove roof decking measures 1-7/16" in thickness, widths are adjustable to desired sizes. The groove is a 1/2" by 7/16" deep, and the tongue is 7/16" wide by 3/8" deep with a 3/16" wide by 3/16" deep chamfer on a single edge. When two pieces of finished milled lumber are joined together they create a 3/8" wide by 3/16" deep v-groove on one face side of a joined board.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.438
Depth of Cut: 0.438
Left Cutter Head
Thickness: 1.438
Depth of Cut: 0.750
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
