Tongue & Groove 1-1/4" - 3
Tongue & Groove 1-1/4" - 3

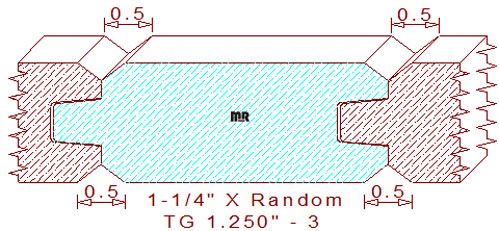

This 1-1/4' - 3 double v-channel/gap decking measures 1-1/4" in thickness, and widths can be adjusted to any desired size. The profile is comprised of a 1/2" wide by 1/2" tall tongue and groove with two 1/4" wide by 1/4" tall chamfers on both edges, there is .020" of voided space left in the joint area for expansion and contraction of the lumber. When two finished milled boards are joined together, they create a 1/2" wide v-groove on both face sides of the merged boards.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.250
Depth of Cut: 0.532
Left Cutter Head
Thickness: 1.250
Depth of Cut: 0.875
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
