T-Astragal 1-1/4" - 5
T-Astragal 1-1/4" - 5

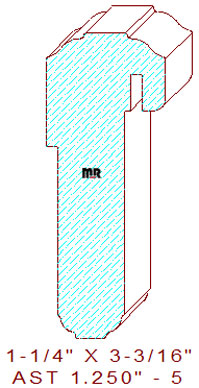

This exterior door t-astragal 1-1/4" - 5 measures 1.250" wide by 3.187" tall. The custom functional profile is comprised of a 29/64" wide horizontal line flanked by a two tangent radius ogee on top, connected to a rabbeted side edge with dimensions of 1-3/16" from the top and 2" from the bottom by 1/8" in-depth, the other side rabbet measures 13/16" from the top by 7/16" deep, the bottom consists of a 5/32" radius ovolo with a 5/16" wide horizontal line in the center. The saw kerf for the weatherstripping is milled by either a universal cutter head on the molder or by a table saw after the milling process.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.187
Depth of Cut: 0.430
Bottom Cutter Head
Width: 3.187
Depth of Cut: 0.120
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
