T-Astragal 1-1/4" - 4

T-Astragal 1-1/4" - 4

T-Astragal 1-1/4" - 4

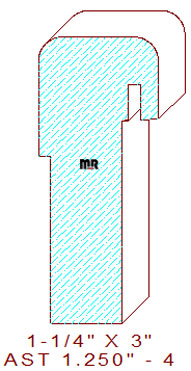

This exterior door T astragal 1-1/4" - 4 measures 1.250" wide by 3.000" tall. The functional profile consists of a double 1/4" radius top, one side of the pattern is rabbeted 1-3/4" wide by 1/8" deep, the other side is rabbeted 2-1/8" wide by 3/8" deep. While milling, the weatherstrip groove would have to be milled on a universal spindle or a table saw afterward.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.250
Depth of Cut: 0.437
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.000
Depth of Cut: 0.375
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.125

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$143.00
Not Needed
$230.50
$230.50
Total:
$604.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.00
Not Needed
$245.50
$245.50
Total:
$642.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$159.00
Not Needed
$260.50
$260.50
Total:
$680.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
