Shutter/Louver 3" - 4

Shutter/Louver 3" - 4

Shutter/Louver 3" - 4

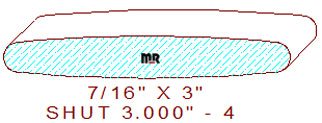

This ellipitical shutter slat 3" - 4, measures 3.000" wide by .437" thickness, enabling the use of resawn six, or solid four-quarter lumber for milling on an industrial-grade molder. The oval-shaped symmetrical profile contains a 14-5/8" radius top and bottom that are tangent to a 5/32" radius half round on each side edge of the design. We offer many other width sizes of louver slats; change the width search parameters in the boxes provided above to find the size you desire.

Architects, interior designers, contractors, lumber mills, cabinet shops, and molding manufacturers are utilizing our wide variety of molding designs. We trust you will find that special profile to enhance the architectural style of your client's home or office. Download all our free dxf files, and see how easily the services we provide can increase productivity while simultaneously reducing manufacturing costs.

For knife quoting purposes, click to open the calculator below; we supplied only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation of how to use the calculator is located here.

Width = 3.000" / Depth of Cut = .104" (top knives) & .104" (bottom cutters).

Thickness = .437" / Depth of Cut = .375" (right blades) & .375" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
