Shutter/Louver 3" - 10

Shutter/Louver 3" - 10

Shutter/Louver 3" - 10

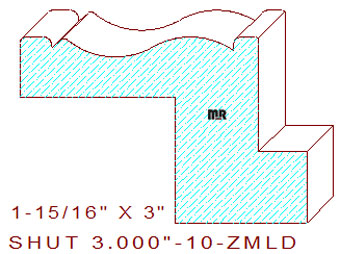

This shutter/louver Z-moulding 3" - 10 measures 3.000" wide by 1.937" thickness, with a .502" depth of cut on the right set of cutters, .218" on the left set of blades, and 1.312" depth of cut on the top horizontal set of knives. Before you begin grinding procedures, please read our article on Moulder Knives Cutting Circle to see if you can mill this pattern on your woodworking machinery.

The z-shaped profile is comprised of a 1-5/8" wide by 1-5/16" tall rabbet on the bottom side, the side edge is rabbeted 1/2" wide by 1-3/16" tall, the top consists of elongated cyma recta flanked by small raised fillets with 1/16" radius edges. This Cad-generated Dxf file contains three skillfully drafted template designs for creating molding knives for this creative z-shaped pattern. All our innovative profiles have a proven unbroken C.N.C. tool path expediting the template-making and knife-grinding process.

Custom-made elegance is a phrase used to define the beauty, style, and artisanship of thousands of our profile designs. Whether you own a recently built house or an older-style residence, we have the ability, knowledge, and experience to create designs that will complement the architectural décor of your beautifully elegant home.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
