Shiplap 5"
Shiplap 5"

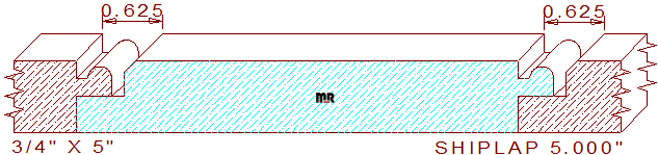

This unique 5" beaded shiplap siding measures 5.000" wide by .750" thickness, permitting the detail to be machined out of four-quarter lumber. The decorative custom profile is comprised of a 1/4" wide half-round bead flanked by 1/8" wide sunk fillet on the right edge, the opposite side retains a 3/8" wide by 1/4" deep rabbet with a 1/8" wide chamfered edge. When two pieces of milled lumber are joined together, they create a 4-3/4" face coverage dimension with a 5/8" wide beaded channel between the joined boards.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.375
Top Cutter Head
Width: 5.000
Depth of Cut: 0.423
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
