Raised Panel Moulding 4-1/4"

Raised Panel Moulding 4-1/4"

Raised Panel Moulding 4-1/4"

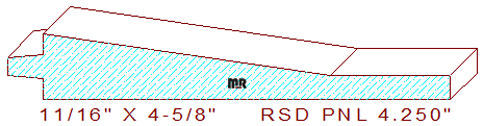

This Slanted Raised Panel Moulding, 4-1/4", measures 4.625" overall width, with a face dimension of 4.250" wide by .687" thickness and a depth of cut of .375" on the left vertical cutters, and a .437" depth of cut on the top horizontal knives.

The beveled profile is comprised of a 3/8" wide by 1/4" tall centered tongue on the left side. The top consists of an eight-point two nine degrees bevel that transitions the elevation from 11/16" to 1/4" thickness, with a 1-1/4" wide straight horizontal line on the thin side of the pattern.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding profile designs. Whether you own a recently built house or an older style residence, we have the ability, knowledge, and experience to create designs that will complement the architectural décor of your client's beautifully elegant home.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
