1/2" Radius Edge Moulding - 14

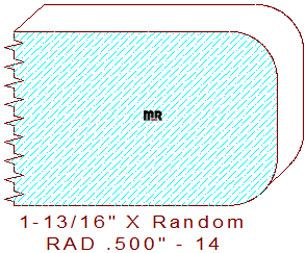

This double 1/2" radius edge molding - 14 measures 1.812" thickness, enabling the detail to be milled from eight-quarter lumber; the width can be machined to any desired size within the parameters of the shaper or molder used to cut the pattern. The profile comprises a 3/4" wide line segment in the center, flanked by a 1/2" radius semicircle on each side edge of the pattern. We consistently provide sufficient blend areas within the knife design, so no one will ever realize where one cutter begins or ends.

Whether you have a Weinig R960 profile grinder, or a CNC Technology template making machine, our innovative molding profiles are intended to save valuable time and money in your demanding production schedule. From just an idea in one's mind to reality in your client's beautiful home, our patterns reflect the attractive elegance and architectural style of their imagination, be creative by mixing and matching a few of our beautiful designs.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements; just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Thickness = 1.812" / Depth of Cut = .687" (right blades) or .687" (left cutters).
