Plinth Block 8-5/8" - 10

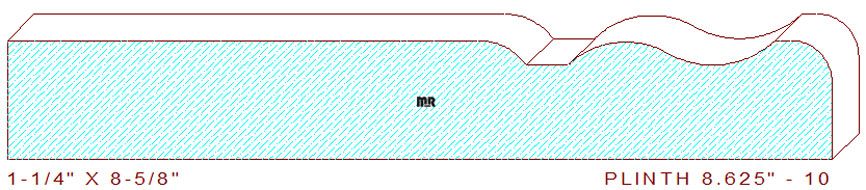

This Plinth Block 8-5/8" - 10 measures 8-5/8" wide by 1.250" thickness. The design is comprised of a 7/16" radius edge fillet at the top connected to cyma recta and a 7/16" wide sunk fillet transitioning to a 5/8" radius edge fillet. There are two template-ready template designs in the downloadable dxf file; one is designed for milling the entire detail while the other is laid out to cut just the detail-only portion requiring two top horizontal cutter heads.
