Plinth Block 4-1/4" - 3

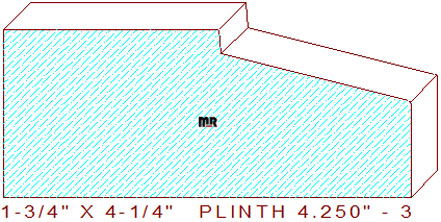

This beveled plinth block 4-1/4" - 3 measures 4.250" wide by 1.750" thickness, requiring the use of eight quarter lumber for milling on an industrial molder. The basic pattern is composed of a 2-1/4" wide flat line on the top left center, attached to a 1/4" vertical drop in elevation, merged with a two-inch-wide 14.036 degree angled line with a 3/64" eased edge that transitions the thickness to one inch on the right side of the pattern. We also offer a larger width of this design for your review and consideration, plinth block 6.500" - 1.

We're delighted you found a beautiful profile that interest you, please consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial molder and knife grinding room. If you're new to the industry, read some of our informational articles, they will help you get started with all the basics. We share our passion for excellence and our quest to be a paramount craftsman for all our talented clients.

For knife quoting purposes, click the calculator below; we have added only the important measurements and enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.250" / Depth of Cut = .937" (top knives).
