Plinth Block 4-1/4" - 2

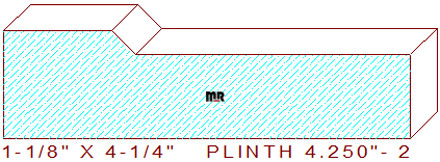

This basic plinth block 4-1/4" - 2 measures 4.250" wide by 1.125" thickness, allowing the detail to be machined from five-quarter lumber. The modest profile is composed of a 1-1/8" wide straight line segment on the left, attached to a 1/4" wide by 1/4" deep forty-five-degree beveled line that joins to a 2-7/8" wide straight line, leaving a 7/8" thickness dimension on the right side of the pattern. Browse our baseboard category for a beautiful profile that will complement this detail.

Architects, interior designers, lumber mills, and manufacturers have been utilizing our wide variety of creative designs for years; we trust you will find that special profile to enhance the architectural style of your client's home. Download all our free molding Dxf files, and see how easily the services we provide can increase productivity while reducing manufacturing costs.

For knife quoting purposes, click the calculator below; we have added only the important measurements and entered the appropriate dimension in the boxes provided. A brief detailed explanation of using the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart and place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.250" / Depth of Cut = .250" (top knives).
