Panel Mould 2-7/8" - 1

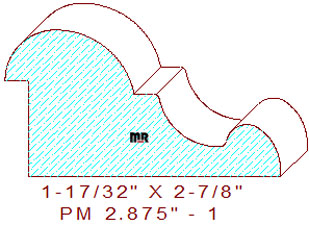

This thumbnail-shaped 2-7/8" - 1 panel mould measures 2.875" wide by 1.531" thickness, necessitating the use of eight quarter lumber for milling on an industrial moulder. The beautifully bold profile is composed of a 1-11/32" wide, two tangent radius elliptical shaped arc on the left, joined to a 17/64" broad line segment and a 5/8" cove in the middle, attached to a two tangent radius thumbnail shaped arc on the right side of the pattern, the back-side rabbet dimension is 1/4" wide by one inch tall.

Before beginning knife grinding procedures, please read our article on knife cutting circles to see if you can safely mill this pattern on your machinery, this profile will not be able to be milled on specific models of molders. Review our commentary on custom-made pressure shoes . This helpful step-by-step article will help you mill this profile to perfection.
