Mullion/Muntin Moulding 3"

Mullion/Muntin Moulding 3"

Mullion/Muntin Moulding 3"

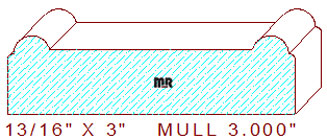

This mullion molding 3" measures 3.000" wide by .812" thickness, with a .450" depth of cut on the top horizontal set of knives. The pattern can be used in conjunction with a few of our door rail profiles.

The symmetrical design is comprised of two 3/16" radius half round circles, with a 1/16" radius eased edge on each side of the pattern, divided by a 2-1/8" wide sunk fillet in the center of the design.

Custom-made excellence is a phrase used to define the beauty, style and artisanship of all our moulding profile designs. Whether you own a recently built house or an older style residence, we have the ability, knowledge, and experience to create moulding designs that will complement the architectural decor of your beautifully elegant home.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
