Mullion/Muntin Moulding 2"

Mullion/Muntin Moulding 2"

Mullion/Muntin Moulding 2"

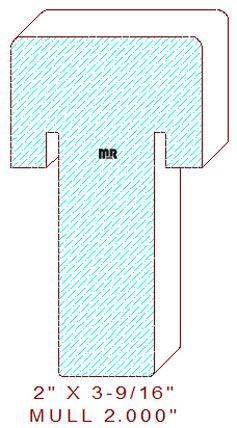

This T Shaped Mullion Moulding 2" measures 2.000" wide by 3.562" tall, the profile is comprised of double 1/8" radius top edges attached to a 2-3/16" tall vertical fillet that transitions inward 1/2" on each side with 1/16" eased edges on the bottom. The exterior weatherstrip kerfs are milled with either a universal spindle or created on a table saw after the milling process.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
