Handrail 6" - 8
Handrail 6" - 8

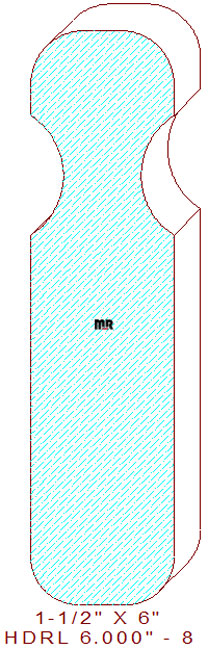

This institutional handrail/guardrail moulding 6" - 8 measures 1.500" width by 6.000" tall, necessitating a 6-1/4" wide blank of eight-quarter lumber for milling on a commercial moulder. The functional guard railing gets installed in the corridors of hospitals, nursing homes, and rehabilitation centers nationwide. The detail comprises two 9/16" radius corners on top for a smoother feeling in the palm when gripped. The sides consist of 1-1/4" tall by 11/32" deep concave semicircle for gripping the railing while walking. The bottom side of the pattern retains two decorative 1/2" radius corners.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.000
Depth of Cut: 0.718
Bottom Cutter Head
Width: 6.000
Depth of Cut: 0.718
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$364.50
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$391.50
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$418.50
(Template not needed)
