Handrail 5-1/2" - 15

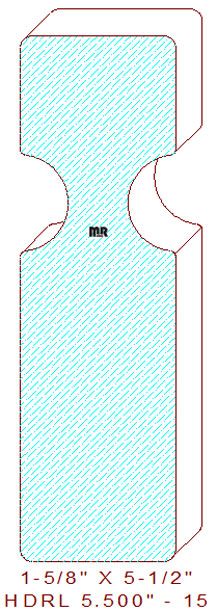

This rectangular 5-1/2" - 15 handrail measures 1.625" wide by 5-1/2" tall, the quadrilateral design has a 1/8" radius on all corners, the half-round shaped finger grasping area is positioned 1-3/4" on center from the top, it measures 1" wide by 1/2" deep. There are two template designs in the downloadable dxf file, the radiused edges will be milled from the right and left vertical cutter heads while the finger grasping area will be milled from the horizontal top and bottom spindles, this will allow versatility to alter the sizes in height if desired.
