Handrail 5" - 13
Handrail 5" - 13

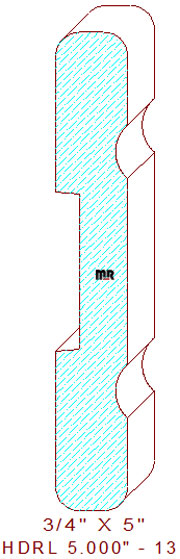

This creative 5" - 13 handrail measures 5.000" tall by .750" wide, allowing the detail to be machined from four-quarter lumber. The stylish profile is composed of a centered 1-5/8" tall by 1/4" deep dado on the back left side for mounting hardware, the face side of the design consists of two decorative 9/16" wide by 1/8" deep concave semicircles that are positioned 1-1/4" on center from both the top and bottom or 2-1/2" on center from the middle, there is a smooth 1/4" radius round-over on all four edges of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.000
Depth of Cut: 0.406
Bottom Cutter Head
Width: 5.000
Depth of Cut: 0.406
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
