Handrail 3-3/4" - 4
Handrail 3-3/4" - 4

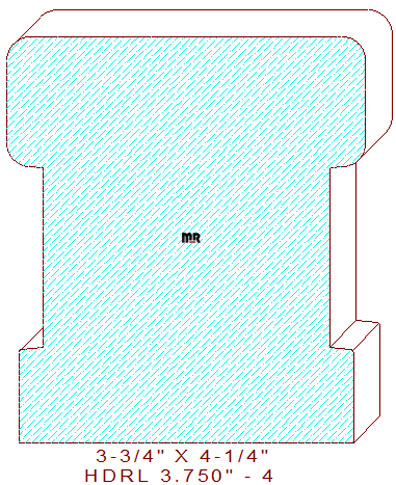

This modern 3-3/4" - 4 handrail measures 3.750" wide by 4.250" tall. The width can be milled to any desired size because the detail is machined from the left and right vertical cutter heads on the shaper or molder. The contemporary profile is composed of 1-3/8" tall line segments on the sides with 1/4" eased edges, connected to a 3/8" deep by 1-7/8" tall finger gripping area in the center, attached to a 1/4" wide by one-inch tall line, leaving a 3-1/2" width dimension at the bottom for an optional dado for balusters or mounting hardware. We offer a smaller version of this same design for your review and consideration,
handrail 2.750" - 8.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 4.250
Depth of Cut: 0.437
Left Cutter Head
Thickness: 4.250
Depth of Cut: 0.437
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$250.00
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$270.00
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$290.00
(Template not needed)
