Handrail 3-1/4" - 13

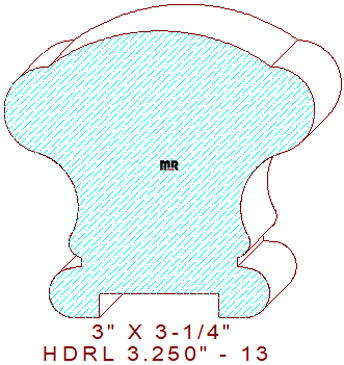

This aesthetic 3-1/4" - 13 handrail measures 3.250" wide by 3.000" tall, authorizing the pattern to be machined out of glued-up pieces of four-, five-, and six-quarter lumber. The luxurious profile is comprised of a two-inch radius convex semicircular arc on top. The symmetrical sides consist of a three tangent radii s-shaped curvature forming a comfortable gripping area in the center. The lower portion retains a decorative 17/64" tall sunk fillet joined to a 17/32" convex half bead. The bottom-most section retains a 1-1/4" wide by 1/4" deep dado for inserting balusters.
