Handrail 3-1/8" - 3

Handrail 3-1/8" - 3

Handrail 3-1/8" - 3

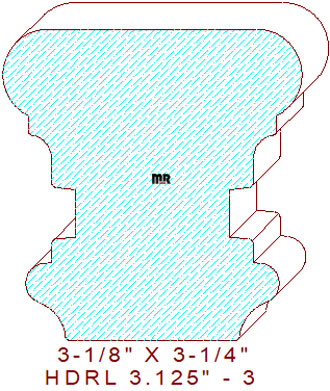

This stylish 3-1/8" - 3 handrail measures 3.125" width by 3.250" tall, necessitating the use of glued-up pieces of five, six, or eight-quarter lumber for milling on an industrial molder; due to the knife layout, the width is adjustable to any desired size. The unique symmetrical insert pattern contains a 29/32" tall bullnose edge with a 3/16" vertical fillet in the upper portion. This line connects to a 9/16" high congee derived from a 1/4" cove that creates the center's finger grip area. The lower center of the design retains a 1/2" tall by 1/4" deep dado for inserting a rope molding decorative piece. Joined to a 1/4" tall fillet with an embellishing two tangent radius ogee with 3/64" eased edges on the bottom corners of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 3.250
Depth of Cut: 0.849
Left Cutter Head
Thickness: 3.250
Depth of Cut: 0.489
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$259.00
$200.00
(Template not needed)
Not Needed
Not Needed
Total:
$459.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$275.00
$216.00
(Template not needed)
Not Needed
Not Needed
Total:
$491.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$291.00
$232.00
(Template not needed)
Not Needed
Not Needed
Total:
$523.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
