Handrail 3" - 8

Handrail 3" - 8

Handrail 3" - 8

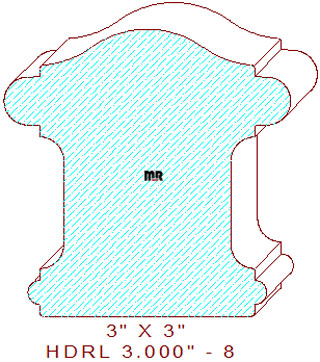

This stylishly unique 3" - 8 handrail measures 3.000" width by 3.000" thickness, requiring glued-up pieces of four, five, six, or eight-quarter lumber for machining on a commercial-grade molder. The sophisticated pattern contains a series of three one-inch radius semicircles on top. The distinctive symmetrical sides consist of a protruding 1/2" tall half-circle flanked by 1/8" tall fillets in the upper portion, connected to a 1-3/8" tall two-way congee made up from two 1/4" coves creating the finger grip area in the center. The lower portion retains a 1/4" tall decorative bead bordered by a 1/8" tall line segment with a 3/64" eased edge on the design's bottom corners.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 3.000
Depth of Cut: 0.625
Left Cutter Head
Thickness: 3.000
Depth of Cut: 0.625
Top Cutter Head
Width: 3.000
Depth of Cut: 0.375
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$230.50
$187.50
(Template not needed)
$230.50
Not Needed
Total:
$648.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$245.50
$202.50
(Template not needed)
$245.50
Not Needed
Total:
$693.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$260.50
$217.50
(Template not needed)
$260.50
Not Needed
Total:
$738.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
