6400 Handrail 3" - 30
6400 Handrail 3" - 30

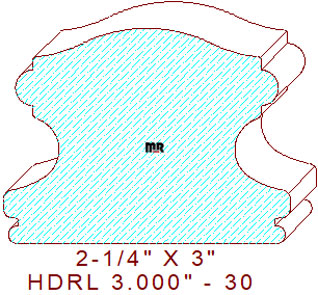

This lovely 3" - 30/6400 handrail measures 3.000" wide by 2.250" thickness, allowing the detail to be machined out of four, five, or six-quarter lumber. The beautiful profile is composed of a combination of half-round beads, fillets, quirks, and a scotia cleverly utilized as a comfortable gripping area; the top consists of a bidirectional shallow three tangent radius cyma reversa with 3/64" eased edges. This particular detail can be produced in many different sizes and widths. Only the top portion of the profile would need to be redesigned if alternative widths were desired.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.250
Depth of Cut: 0.580
Left Cutter Head
Thickness: 2.250
Depth of Cut: 0.580
Top Cutter Head
Width: 3.000
Depth of Cut: 0.302
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$150.00
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$162.00
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$174.00
(Template not needed)
