Handrail 3" - 3
Handrail 3" - 3

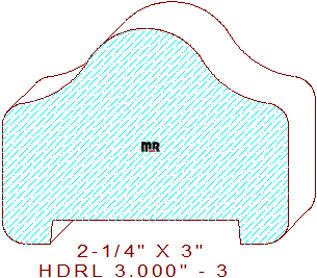

This custom 3" - 3 handrail measures 3.000" wide by 2.250" tall, necessitating solid ten or two glued-up pieces of five-quarter lumber for milling on an industrial molder. The creative hefty profile is composed of a bidirectional wave-like design consisting of a 45/64" convex arc on the top center, tangent to two 61/64" concave semicircles that transition into a 1/4" round-over on the upper edges, as well as the lower sides, the bottom dado measures two inches wide by 1/4" deep.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.250
Depth of Cut: 0.406
Left Cutter Head
Thickness: 2.250
Depth of Cut: 0.406
Top Cutter Head
Width: 3.000
Depth of Cut: 1.216
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.250
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$150.00
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$162.00
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$174.00
(Template not needed)
