Handrail 3" - 19
Handrail 3" - 19

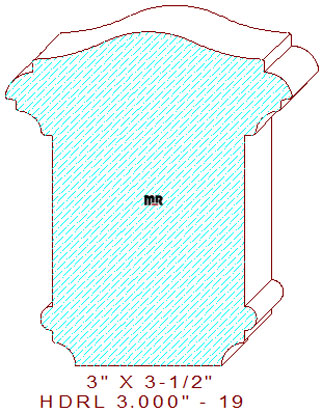

This elegant 3" - 19 handrail measures 3.000" wide by 3.500" tall, necessitating the use of glued-up four-quarter lumber to make a rough moulding blank 3-1/4" wide by 3-3/4" tall for milling on an industrial molder. The gorgeous symmetrical profile is composed of a bidirectional two tangent radius wave like cyma reversa with 3/64" eased edges on top, each side consists of a quarter circle flanked by a vertical line and a 1/4" radius cove making a sturdy finger grip area, connected to a tiny horizontal line that merges with a 1-25/32" tall vertical line segment in the center, joined to a small decorative bead, tiny vertical fillet and a 1/4" cove at the bottom of the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 3.500
Depth of Cut: 0.738
Left Cutter Head
Thickness: 3.500
Depth of Cut: 0.738
Top Cutter Head
Width: 3.000
Depth of Cut: 0.287
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$229.50
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$246.50
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$263.50
(Template not needed)
