Handrail 2-3/4" - 9
Handrail 2-3/4" - 9

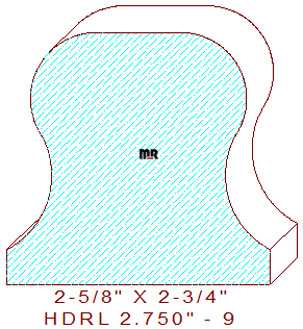

This humble 2-3/4" - 9 handrail measures 2.750" wide by 2.625" tall, allowing the pattern to be machined out of glued-up pieces of four, five and six-quarter lumber. The unpretentious profile is composed of a 7/8" wide flat line tangent to two 11/16" radius round-overs on the top, attached to a 7/8" radius concave finger gripping area in the center with a 23/64" tall line segment on the bottom side edges.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.625
Depth of Cut: 0.498
Left Cutter Head
Thickness: 2.625
Depth of Cut: 0.498
Top Cutter Head
Width: 2.750
Depth of Cut: 0.509
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$168.75
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$182.25
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$195.75
(Template not needed)
