6910 Handrail 2-5/8" - 28
6910 Handrail 2-5/8" - 28

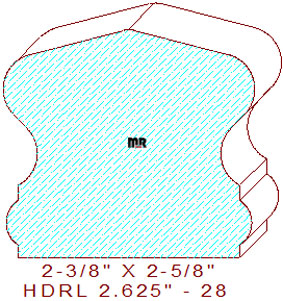

This elegant 2-5/8" - 28 6910 handrail measures 2.625" wide by 2.375" tall. The prestigious time-honored profile is comprised of a 1/4" radius semicircle flanked by a bidirectional 14.413 degree beveled lines on top, the sides consists of a french curve made from two tangent 3/8" radius arcs and coves, the bottom side portions of the design has a 15/32" wide half circle with a 5/32" vertical line above and a 1/8" vertical line below. The bottom width is 2-5/16" wide, a dado for many different sized balusters can easily be milled in this area.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.375
Depth of Cut: 0.500
Left Cutter Head
Thickness: 2.375
Depth of Cut: 0.500
Top Cutter Head
Width: 2.625
Depth of Cut: 0.319
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$156.25
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$168.75
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$181.25
(Template not needed)
