Handrail 2-5/8" - 13
Handrail 2-5/8" - 13

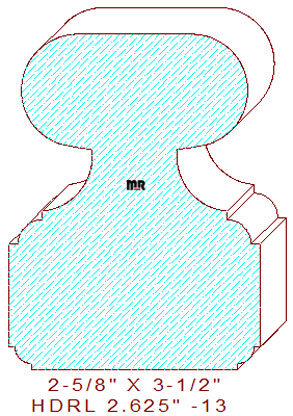

This embellished 2-5/8" - 13 handrail measures 2.625" wide by 3.500" tall. The elaborately shaped profile is comprised of two distinctive sections: the upper portion consists of a 2-3/8" wide rectangular shape with 19/32" bullnose edges connected to a 37/64" concave finger gripping area in the center, attached to a 1-1/16" tall vertical line flanked by two different sized ovolo’s with a 1/16" tall line in the lower section of the design. The bottom width dimension is 2-5/32" wide, and sizes are adjustable to any desired dimension within the machinery used to mill the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 3.500
Depth of Cut: 0.932
Left Cutter Head
Thickness: 3.500
Depth of Cut: 0.932
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$229.50
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$246.50
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$263.50
(Template not needed)
