6510 Handrail 2-5/8"

6510 Handrail 2-5/8"

6510 Handrail 2-5/8"

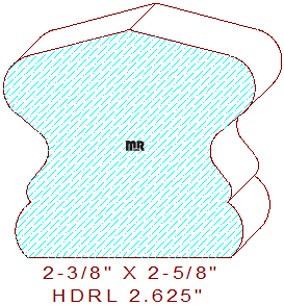

This beautiful 2-5/8" 6510 handrail measures 2.625" wide by 2.375" tall. Our profile design comprises a bidirectional 14.75-degree beveled line tangent off a 1/8" radius in the center. The sides consist of an 11/32" radius beads connected to a 1/4" cove, creating a firm gripping area in the middle of the pattern, attached to a 5/32" bead and a 23/64" radius arc, leaving a 2-1/8" wide flat area at the bottom of the detail. This flat bottom will enable a dado to be milled for a variety of different-sized balusters.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 2.375
Depth of Cut: 0.563
Left Cutter Head
Thickness: 2.375
Depth of Cut: 0.563
Top Cutter Head
Width: 2.625
Depth of Cut: 0.363
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.25
$156.25
(Template not needed)
$211.75
Not Needed
Total:
$567.25
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$211.75
$168.75
(Template not needed)
$225.25
Not Needed
Total:
$605.75
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$224.25
$181.25
(Template not needed)
$238.75
Not Needed
Total:
$644.25
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
