Handrail 2-3/8" - 17

Handrail 2-3/8" - 17

Handrail 2-3/8" - 17

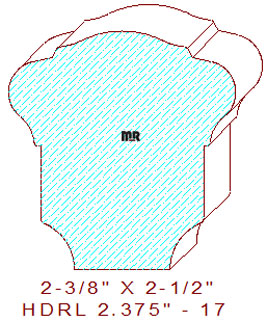

This Historic Handrail 2-3/8" - 17 measures 2.375" wide by 2.500" tall, with a .169" depth of cut on the top and .687" depth of cut on both the right and left vertical cutters.

The symmetrical old world design is comprised of a shallow bidirectional cyma reversa on the top that transitions into another cyma reversa on the sides, attached to a tall vertical fillet which is joined to a 17/32" radius cavetto on the bottom sides of the pattern, leaving the bottom fillet at a 1" wide dimension.

Take advantage of our specialized design skills, over thirty years of experience in wood moulding manufacturing, superior designed acrylic templates, and exceptional quality custom moulding knives.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
