Handrail 2-3/8" - 1
Handrail 2-3/8" - 1

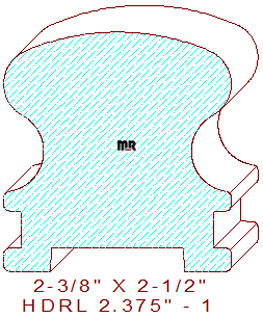

This distinctive 2-3/8" - 1 handrail measures 2.375" width by 2.500" tall, requiring the use of glued-up pieces of five, six, or eight-quarter lumber for milling on an industrial-grade molder. The graceful symmetrical profile contains a 2-27/64" elliptical-shaped convex arc on top. The rounded upper portion connects to a 3/8" radius, bowed sides tangent to a 7/16" concave semicircle, creating a comfortable finger grip area in the center. Joined to a decorative 3/16" tall by 3/8" wide groove with 1/16" eased edges for inserting a piece of rope molding or other embellishing inlay. The bottom of the design retains a 1-3/8" wide by 1/4" deep dado for installing balusters.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.500
Depth of Cut: 0.416
Left Cutter Head
Thickness: 2.500
Depth of Cut: 0.416
Top Cutter Head
Width: 2.375
Depth of Cut: 0.406
Bottom Cutter Head
Width: 2.375
Depth of Cut: 0.250
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$162.50
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$175.50
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$188.50
(Template not needed)
