Handrail 2-1/4" - 23
Handrail 2-1/4" - 23

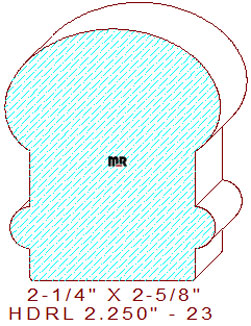

This beautifully creative 2-1/4" - 23 handrail measures 2.250" wide by 2.625" tall, allowing the detail to be machined out of glued-up pieces of four, five and six-quarter lumber. The unique profile is composed of a 1-3/8" convex arc tangent off of a 13/16" radius semicircle on top, connected to a 37/64" vertical fillet which provides a comfortable gripping area on the sides, joined to an elegant 7/16" tall half round bead and an 11/32" vertical line segment with a 3/64" eased edge on both sides, the bottom width dimension is 1-47/64" wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.625
Depth of Cut: 0.406
Left Cutter Head
Thickness: 2.625
Depth of Cut: 0.406
Top Cutter Head
Width: 2.250
Depth of Cut: 0.615
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$168.75
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$182.25
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$195.75
(Template not needed)
