Moulding Knives by Mirror Reflections

Moulding Knives
by Mirror Reflections
(801)451-5987

Search Our Moulding Knives Catalog by Category and Size

*Enter desired search sizes - use whole numbers & decimals

Handrail 2-1/4" - 13

Handrail 2-1/4" - 13

Handrail 2-1/4" - 13

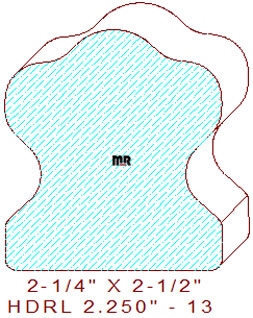

This uniquely shaped handrail 2-1/4" - 13 measures 2.250" wide by 2.500" tall, permitting the detail to be machined out of glued-up pieces of four, five, six, or eight-quarter lumber. The graceful design is composed of a series of wave-like semicircles all tangent to one another; an optional dado could easily be milled in the bottom to receive a balustrade or balusters. The stylish profile will add a touch of architectural elegance to any home or office.

Are you a moulding manufacturer? If so, please add your company to our millwork suppliers map; this valuable resource will help potential customers experience the craftsmanship of your creative woodworking shop. Did you know you can connect our substantial moulding catalog to your website? It's free; offer your clients profile designs they don't even know exist.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 2.500
Depth of Cut: 0.486
Left Cutter Head
Thickness: 2.500
Depth of Cut: 0.486
Top Cutter Head
Width: 2.250
Depth of Cut: 0.336
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$205.50
$162.50
(Template not needed)
$193.00
Not Needed
Total:
$561.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$218.50
$175.50
(Template not needed)
$205.00
Not Needed
Total:
$599.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$231.50
$188.50
(Template not needed)
$217.00
Not Needed
Total:
$637.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
