Fluted Moulding 3-1/4" - 3

Fluted Moulding 3-1/4" - 3

Fluted Moulding 3-1/4" - 3

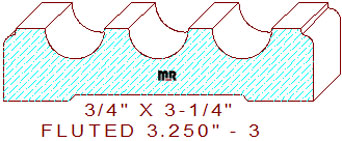

This decorative fluted casing molding 3-1/4" - 3 measures 3.250" wide by .750" thickness, permitting the pattern to be machined out of four quarter lumber. The beautiful symmetrical profile is composed of three 5/8" wide concave half-round flutes divided by two 1/4" wide line segments in the center, flanked by a 5/16" wide flat line with a 1/16" drop in elevation, and a 1/8" round-over on both the right and left side edges of the design.

We're delighted you found a beautiful profile that interest you, please consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial moulder and knife grinding room. If you are new to the industry read some of our informational articles, they will help you get started with all the basics. One thing we have in common is our passion for excellence and our quest to be paramount craftsman for all our clients.

For molding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions just print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.250" / Depth of Cut = .343" (top knives) & .063" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
