Cabinet Door Moulding 3-1/4"

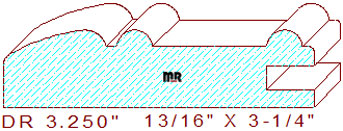

This beautiful beaded door rail moulding 3-1/4" measures 3.250" wide by .812" thickness, allowing the detail to be machined out of four-quarter lumber. The ravishing profile is composed of three tangent radiuses creating the down-sloping semicircular arc on the top left, attached to a 7/64" wide sunk fillet, joined to two 3/8" wide half round beads divided by a 1-3/16" wide line segment in the center, merged to a 1/8" wide horizontal line with a 1/16" rounded edge above the dado for the panel on the right side of the design. We offer a 2-1/2" matching drawer front of this design for your review and consideration, drawer front 2.500" - 58.

Are you thinking about building an enclosed tool room for the profile knife grinder, template making machine and a place to store all your templates and knives? Please read our helpful commentary on securing the knife grinder's linear bearings, this small, simple task can save you thousands of dollars in repair cost from not securing the lineal table bearings before moving.

For knife quoting purposes, click to open the calculator below; we supplied only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.250" / Depth of Cut = .500" (top knives).
