Cabinet Door Moulding 3" - 82

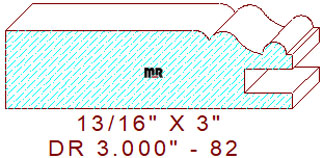

This cabinet door rail moulding 3" - 82 measures 3.000" wide by .812" thickness, enabling the detail to be machined out of four quarter lumber. The attractive profile is composed of a 2-1/8" wide straight flat line with a 3/16" eased edge in the center, attached to a two tangent radius cyma reversa that transitions into a 1/4" wide half round bead with a small 1/16" wide line segment above the dado for the panel on the right side edge of the detail.

Need this profile template and a set of knives quickly? We generally can have these cutters ground with any one of our premium quality high-speed steels or carbide and shipped within twenty-four hours. We have artistic profiles from several different architectural eras. There are literally thousands of compelling designs to help match your creative style.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .250" (top knives).
