Cabinet Door Moulding 3" - 77

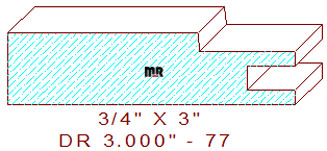

This modern cabinet door rail moulding 3" - 77 measures 3.000" wide by .750" thickness, permitting the pattern to be machined from four-quarter lumber. The contemporary profile is composed of a two-inch-wide straight flat line on the left, connected to a vertical line that drops the elevation 3/16" with a 3/64" rounded edge, merged with a one-inch wide line segment with a 3/64" eased corner above the dado. We offer the matching drawer front for this detail, you may want to review and consider this pattern for the same project, drawer front 2.000" - 9.

You will be able to manufacture high speed steel or carbide profile knives literally within minutes after downloading this beautiful pattern from the purchase dxf file link below. Check out our updated tooling and supplies catalog for other high-quality products we supply for your moulder and knife grinding room, all with competitive pricing and fast shipping options.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .375" (top knives).
