Cabinet Door Moulding 3" - 63

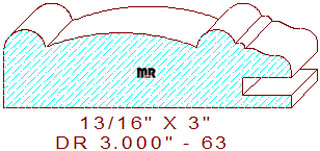

This fashionable cabinet door rail molding 3" - 63 measures 3.000" wide by .812" thickness enabling the pattern to utilize four quarter lumber for milling on an industrial-grade molder. The well-designed pattern contains a 7/32" radius half-circle on the top left. Attached to a 2-1/8" convex arch in the center, joined to an additional half bead with a 1/16" quarter round step and a three tangent radius s-shaped curvature on the right side of the design. In addition, we offer the matching drawer front of this pattern for your review and consideration, door rail 2.250" - 34.

Be sure to check out a few other profile designs for different rooms in your beautiful home or office. Our moulding catalog has over fifteen thousand profiles to select from. Our eminence derives from over thirty-five years of experience and superior functionality of all our custom knife profiles.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 2.937" / Depth of Cut = .578" (top cutters).
