Cabinet Door Moulding 3" - 61

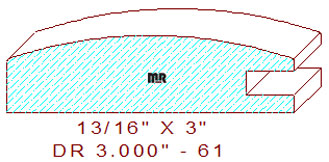

This mitered cabinet door rail moulding 3" - 61 measures 3.000" wide by .812" thickness, permitting the detail to be milled from four quarter lumber. The semicircular profile is composed of a 4.625" radius arc with a 3/64" round-over leaving a 9/16" thickness dimension on each side edge of the design. We offer a similar profile for use as the drawer front for your review and consideration, door rail 1.750" - 21.

Need some supplies for your moulder? Choose any of our quality high speed knife steel or premium carbide, we generally can ship these items the same day. We are also a Weinig authorized agent offering some of the highest quality cutter heads and tooling supplies for your moulder and tool grinding room.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .435" (top knives).
