Cabinet Door Moulding 3" - 55

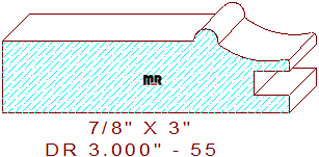

This mitered cabinet door rail moulding 3" - 55 measures 3.000" wide by .875" thickness, enabling the detail to be milled from either four or five quarter lumber. The good-looking profile comprises a two-inch-wide straight flat line at three-quarter-inch thickness, connected to a 1/4" wide half round bead that transitions into a 27/32" radius concave semicircle with a 3/64" eased edge on the right side of the pattern.

We offer thousands of inspirational architectural profiles that will shape the contour of every exquisite room in your client's beautiful home. Download all our free dxf files, see how easy the services we provide can increase productivity while reducing manufacturing costs.

For knife quoting purposes, click to open the calculator below; we have added only the important measures; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .500" (top knives).
