Cabinet Door Moulding 3" - 54

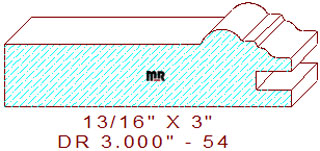

This mitered cabinet door moulding 3" - 54 measures 3.000" wide by .812" thickness, allowing the detail to be milled from four quarter lumber. The attractive profile is comprised of a 2-1/16" wide horizontal line at 21/32" thickness dimension, attached to a 15/64" radius half round circle that transitions into a small ogee bordered by small horizontal line segments at different elevations. We offer this detail with an additional half round bead on the left hand side for your review and consideration, door rail 3.000" - 10.

Whether you have a Weinig R1000 profile grinder, or a CNC Technology template making machine, our innovative molding profiles are intended to save valuable time and money in your demanding production schedule. From just an idea in one's mind to reality in your client's beautiful home, our patterns reflect the attractive elegance and architectural style of their imagination, be creative by mixing and matching a few of our beautiful designs.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .466" (top knives).
